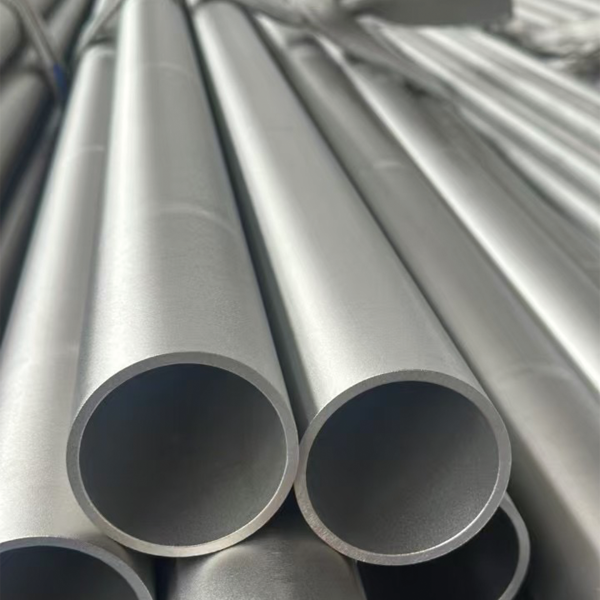

Seamless Stainless Steel TP317L Pipe
Technical Guide, Specifications & Industrial Applications
Product Overview
Seamless Stainless Steel TP317L Pipe (UNS S31703 / EN 1.4438) is a high-alloy austenitic stainless steel pipe manufactured through a seamless process from a solid billet.
Compared with welded pipes, TP317L seamless pipes offer:
- No weld seams (eliminating structural weak points)
- Uniform wall thickness
- Higher pressure resistance
- Superior reliability in critical applications
These characteristics make TP317L an ideal choice for high-pressure, high-temperature, and corrosive environments.
Why Choose TP317L Stainless Steel Pipe?
High Molybdenum Content (≥ 3.0%)
Enhances resistance to:
- Pitting corrosion
- Crevice corrosion
- Chloride attack
Significantly outperforms 316L stainless steel in aggressive environments.
Low Carbon Content (≤ 0.03%)
Prevents:
- Sensitization during welding
- Intergranular corrosion
This eliminates the need for post-weld heat treatment (PWHT).
Key Advantages of TP317L Seamless Pipe
1. Excellent Corrosion Resistance
High chromium and molybdenum content provides strong resistance against:
- Sulfuric acid
- Phosphoric acid
- Chloride-rich media
2. Superior Mechanical Strength
Seamless construction ensures:
- High pressure-bearing capacity
- Enhanced structural integrity
- Long service life
3. Outstanding Weldability
Low carbon composition ensures:
- Stable microstructure in the Heat Affected Zone (HAZ)
- Maintained corrosion resistance after welding

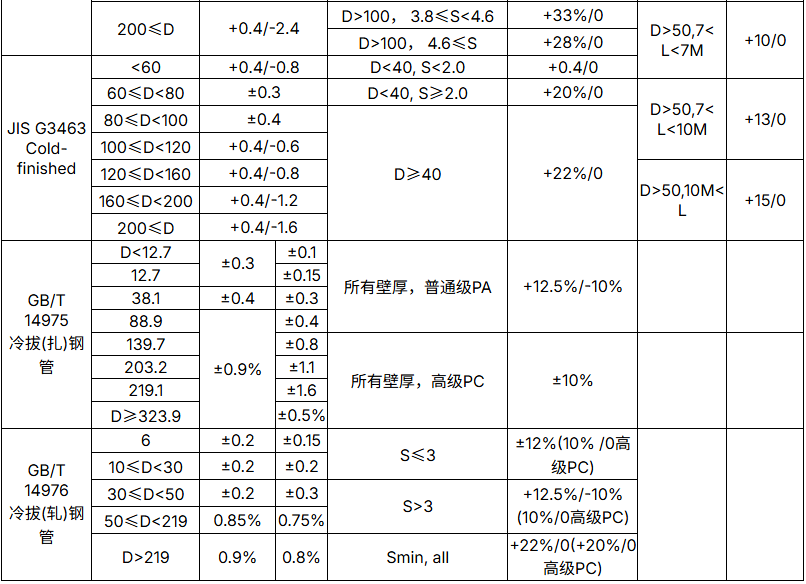

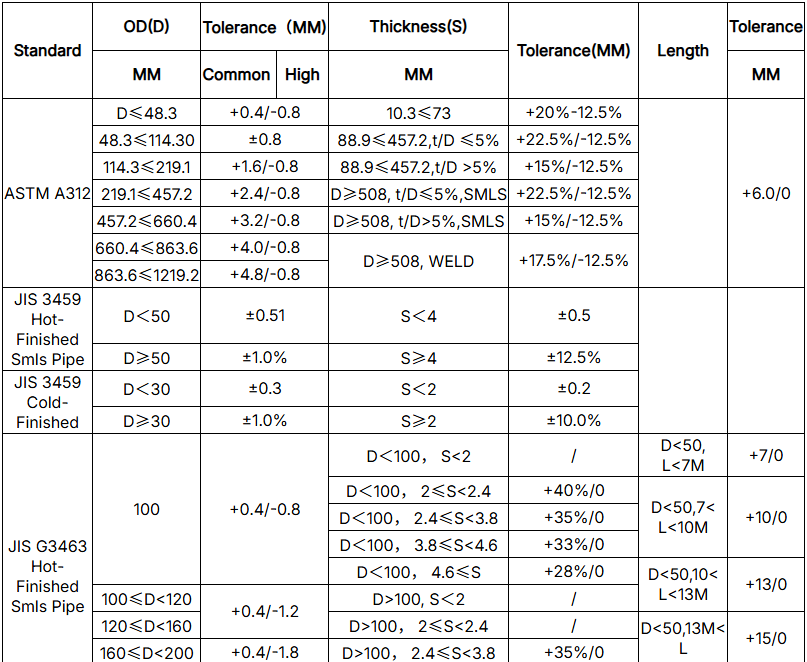

Standards & Dimensional Tolerances
Manufactured in compliance with:
- ASTM A312
- ASME SA312
- JIS G3459
- GB/T 14976
Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for 317L stainless steel.
The composition of Stainless Steel TP317L is carefully balanced to achieve its superior corrosion resistance and high strength.
Stainless Steel TP317L is specifically designed to maintain its strength and shape in high-stress, corrosive environments.
These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Typical Applications
TP317L seamless stainless steel pipes are widely used in:
Pulp & Paper Industry
Bleaching systems and sulfite processing
Chemical & Petrochemical Industry
Acidic and chloride-containing systems
Pharmaceutical & Food Processing
Hygienic pipelines requiring high corrosion resistance
Marine Engineering
Seawater systems, desalination plants, offshore platforms
Quality Assurance & Testing
All TP317L pipes undergo strict quality control procedures:
Certification
- EN 10204 3.1 / 3.2 Mill Test Certificate (MTC)
- Full traceability of raw materials
Non-Destructive Testing (NDT)
- PMI (Positive Material Identification)
- Eddy Current Testing (ET)
- Ultrasonic Testing (UT)
Mechanical Testing
- Flattening Test
- Flaring Test
- Bending Test
- Grain Size Analysis
Corrosion Testing
- Intergranular Corrosion (IGC) Test
- Pitting Resistance Test
