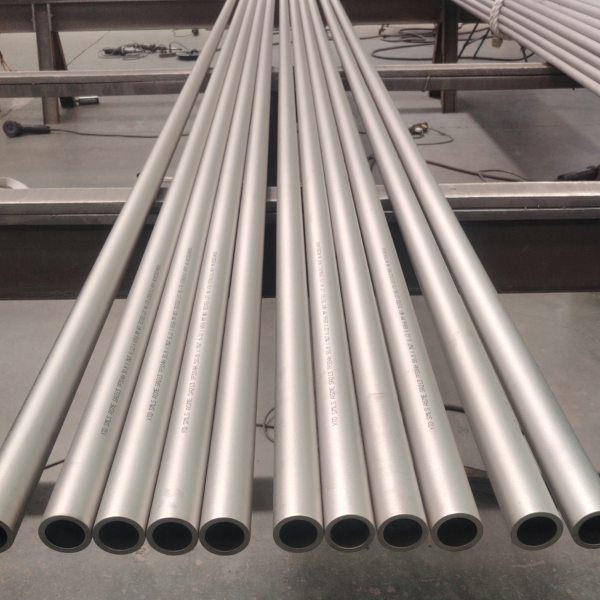

Seamless Stainless Steel TP304L Pipe – Low-Carbon Austenitic Stainless Steel for Welded and Corrosion-Resistant Systems
ASeamless Stainless Steel TP304L Pipe is a corrosion-resistant industrial pipe manufactured from a solid stainless steel billetthroughhot extrusion or cold drawing processes. The seamless manufacturing method eliminates longitudinal weld seams, ensuring uniform metallurgical structure, improved pressure resistance, and consistent mechanical properties.
Under the ASTM A312 / ASME SA312 specification,TP304L stainless steel is a low-carbon version of Type 304 austenitic stainless steel. It is commonly dual-certified as EN 1.4307.
The defining feature of 304L stainless steel is its reduced carbon content (maximum 0.03%), compared with 0.08% in standard 304 stainless steel. This lower carbon level significantly reduces the risk of chromium carbide precipitation during welding, preventing intergranular corrosion in the heat-affected zone (HAZ).
Because of these characteristics, ASTM A312 TP304L seamless pipes are widely used in industries requiring extensive welding, high corrosion resistance, and long-term structural reliability.
Key Technical Advantages of TP304L Seamless Pipe
Using304L stainless steel in seamless pipe form provides several important engineering advantages in demanding industrial environments.
Resistance to Intergranular Corrosion
Thelow carbon composition prevents the formation of chromium carbides at grain boundaries during exposure to temperatures between 425°C and 815°C, a phenomenon known as sensitization. This ensures the material maintains its corrosion resistance after welding.
Excellent Weldability
Because of its low carbon content, TP304L stainless steel often does not require post-weld heat treatment, reducing fabrication time and installation costs for large piping systems.
High Pressure Reliability
Theseamless pipe structure eliminates longitudinal weld seams, resulting in improved structural integrity and higher allowable working pressures in critical process systems.
Superior Formability and Fabrication Performance
TP304L stainless steel maintains excellent ductility and workability, allowing the pipe to be easily processed through bending, flanging, forming, and complex piping fabrication.
Excellent Low-Temperature Toughness
As an austenitic stainless steel, TP304L retains high impact toughness and mechanical stability at cryogenic temperatures, making it suitable for low-temperature applications.
Product Specifications and Data
To provide a comprehensive understanding of our Seamless Stainless steel 304L pipe, here are the detailed technical specifications and performance data.

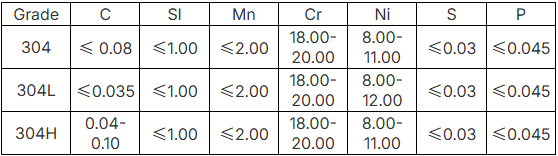

The exceptional properties of 304L are a direct result of its specialized low-carbon chemical composition.

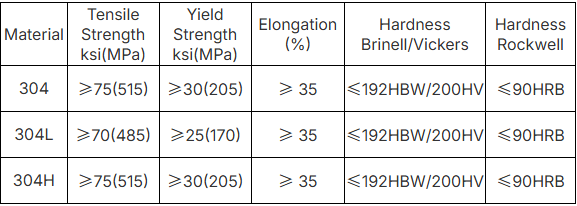

Despite its lower carbon content, 304L maintains excellent mechanical properties.
Here are some of the key physical properties of 304L that dictate its performance in various applications.

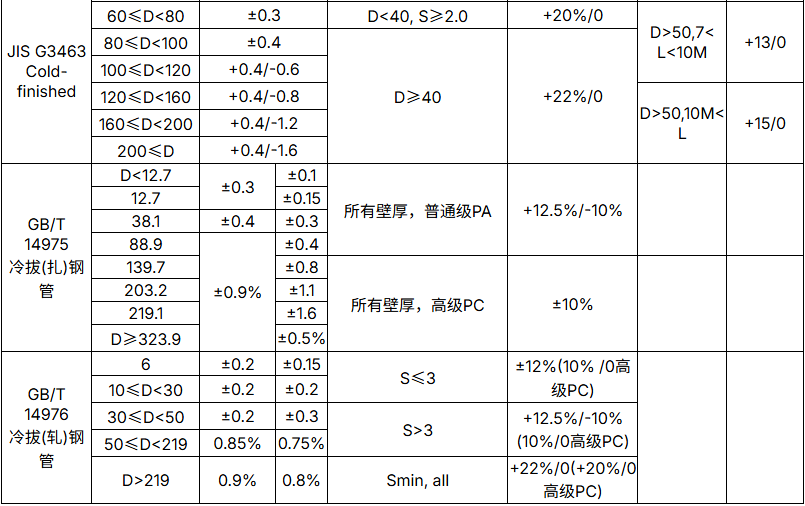

The Standard of Seamless Nickel Alloy Tube or Pipe ASTM B829 Size Tolerance Chart (mm)
Typical Applications of ASTM A312 TP304L Seamless Pipe
Due to its corrosion resistance and excellent weldability, TP304L seamless stainless steel pipe is widely used in industries that require extensive welding and high structural reliability.
Petrochemical and Oil Refining
- Process piping systems
- Heat exchanger tubing
- Corrosion-resistant pipelines
- Field-welded piping installations
Nuclear and Power Generation
- Cooling water systems
- Structural containment components
- Corrosion-resistant piping for high-reliability systems
Chemical Processing Industry
TP304L pipes are commonly used for handling:
- Nitric acid
- Oxidizing chemicals
- Industrial solvents
- Corrosive process fluids
High-Purity Processing Industries
Because of its smooth internal surface and hygienic properties, TP304L is widely used in:
- Food and beverage processing
- Pharmaceutical manufacturing
- Biotechnology production systems
- CIP (Clean-in-Place) sanitary piping systems
Quality Assurance and Compliance Standards
To ensure reliability and full traceability, all Seamless Stainless Steel TP304L Pipes are supplied with comprehensive testing and certification documentation in compliance with ASTM A312 / ASME SA312 standards.
Certification & Test | Technical Description |
Material Test Certificates | Fully compliant with EN 10204 3.1 / 3.2 certification |
Alloy Verification | 100% Positive Material Identification (PMI) to confirm chemical composition |
Non-Destructive Testing | Ultrasonic Testing (UT) and Eddy Current Testing (ECT) according to ASTM E213 |
Pressure Testing | Hydrostatic pressure testing to verify pipe integrity |
Dimensional Inspection | Precision measurement of OD, wall thickness (WT), and surface roughness (Ra) |
Heat Treatment Records | Solution annealing documentation and metallurgical grain size analysis |
