Seamless Stainless Steel TP321H Pipe (UNS S32109) – High-Temperature Structural Solution
Seamless Stainless Steel TP321H Pipe (UNS S32109) is a titanium-stabilized austenitic stainless steel pipe designed for long-term service in elevated temperature environments, typically between 400°C and 815°C (750°F – 1500°F).
As the high-carbon version of Grade 321 stainless steel, the “H” designation indicates a controlled carbon range of 0.04% – 0.10%, which significantly improves creep rupture strength and high-temperature load-bearing capacity.
Manufactured using a seamless process, the pipe features a uniform grain structure without longitudinal weld seams, ensuring superior reliability under high pressure, thermal cycling, and mechanical stress.
Key Features and Technical Advantages
Enhanced Creep Rupture Strength
The increased carbon content improves resistance to creep deformation and rupture, making TP321H ideal for continuous high-temperature service in critical systems.
Titanium Stabilization (Anti-IGC Protection)
Titanium (Ti) binds with carbon to prevent chromium carbide precipitation, effectively eliminating intergranular corrosion (IGC) during welding and high-temperature exposure.
Excellent Oxidation and Scaling Resistance
TP321H offers stable performance in oxidizing environments up to 870°C (1600°F), ensuring long-term durability in harsh thermal conditions.
Seamless Structural Integrity
The absence of weld seams eliminates structural weak points, allowing the pipe to safely withstand high internal pressure and cyclic thermal stress.

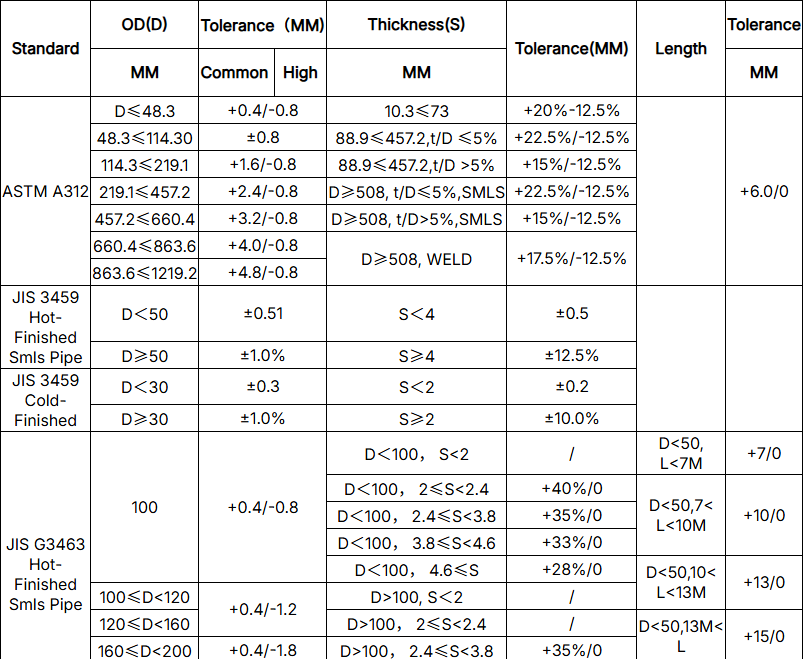

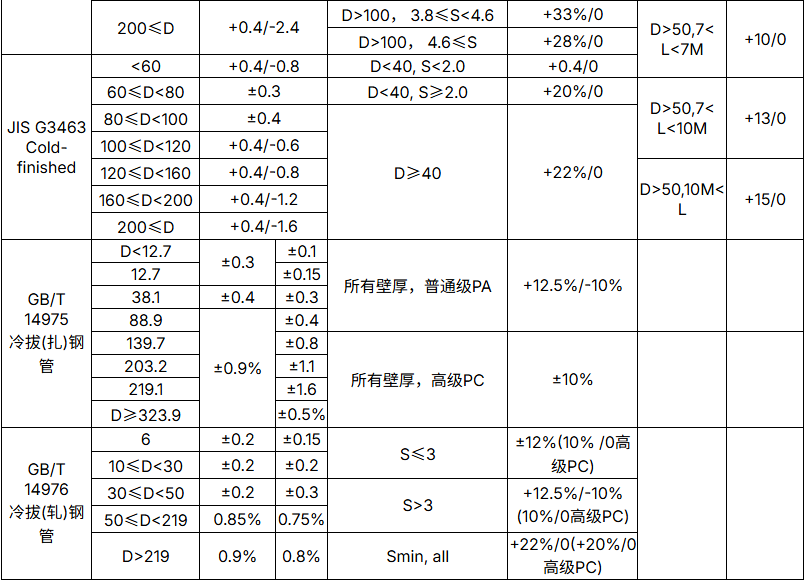

Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for 321H stainless steel.
The composition of Stainless Steel 321H is carefully balanced to achieve its superior high-temperature strength and corrosion resistance.
Stainless Steel 321H is specifically designed to maintain its strength and shape in high-temperature, high-stress environments.
These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Typical Industrial Applications
Thanks to its superior high-temperature strength and corrosion resistance, TP321H is widely used in:
Aerospace Industry
Jet engine components, exhaust manifolds, and afterburner liners requiring thermal fatigue resistance.
Petrochemical & Refining
High-temperature piping systems in catalytic cracking units and hydrotreating processes.
Power Generation
Superheater tubes, boiler headers, and steam pipelines in supercritical and ultra-supercritical plants.
Environmental & Waste Treatment
Thermal oxidizers and recuperators handling high-temperature corrosive gases.
Quality Assurance, Testing & Certification
Each TP321H seamless pipe is delivered with full traceability and comprehensive inspection documentation:
Manufacturing Standards and Compliance
TP321H seamless pipes are produced in accordance with major international standards, ensuring compatibility with global engineering projects:
- ASTM A312 / ASME SA312 – Seamless austenitic stainless steel pipes
- ASTM A213 / ASME SA213 – Boiler and heat exchanger tubes
- EN 10216-5 – Seamless pressure tubes (European standard)
- JIS G3459 / JIS G3463 – Japanese industrial standards
Material Certification
- EN 10204 3.1 / 3.2 Material Test Certificates (MTC)
Non-Destructive Testing (NDT)
- 100%Ultrasonic Testing (UT)
- 100%Eddy Current Testing (ET)
Material Verification
- Positive Material Identification (PMI)
Corrosion Testing
- Intergranular Corrosion (IGC) test per ASTM A262 Practice E
Mechanical Testing
- Flattening, flaring, bend, and hardness tests
Third-Party Inspection
Inspection by SGS, BV, TUV, ABS, or other authorized bodies
