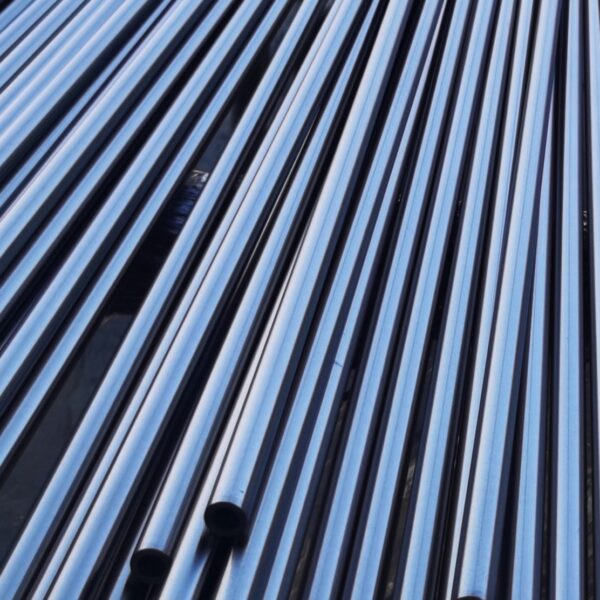

Premium Seamless Stainless Steel TP316Ti Tubing (1.4571 / UNS S31635)
What is Seamless Stainless Steel TP316Ti Tubing?
Seamless Stainless Steel TP316Ti Tubing (EN 1.4571 / UNS S31635) is a titanium-stabilized austenitic stainless steel tube engineered for high-temperature and highly corrosive environments. It is manufactured from solid billets using hot piercing and precision cold drawing processes, ensuring a fully homogeneous structure without weld seams.
This seamless construction provides:
- Superior pressure resistance
- Enhanced structural integrity
- Zero risk of weld-related defects or leakage
Why Choose TP316Ti Over 316L?
While 316L stainless steel is widely used for general corrosion resistance, it is prone to sensitization (chromium carbide precipitation) when exposed to temperatures between 425°C – 815°C (800°F – 1500°F).
TP316Ti solves this issue through titanium (Ti) stabilization:
- Titanium binds with carbon to form stable titanium carbides
- Prevents chromium depletion at grain boundaries
- Maintains long-term corrosion resistance under thermal cycling
This makes TP316Ti tubing the preferred material for high-temperature process systems and critical corrosion applications.
Key Advantages of TP316Ti Seamless Tubes
1. Outstanding Intergranular Corrosion Resistance
Titanium stabilization eliminates carbide precipitation, ensuring durability after welding and prolonged high-temperature exposure.
2. Superior Resistance to Pitting & Crevice Corrosion
With2.0% – 2.5% molybdenum (Mo) content, TP316Ti performs exceptionally well in:
- Chloride-rich environments
- Acidic and marine conditions
3. Enhanced High-Temperature Mechanical Properties
Compared to 316/316L:
- Higher tensile and yield strength
- Improved creep resistance
- Better long-term thermal stability
4. Seamless High-Pressure Reliability
The absence of weld seams ensures:
- Higher allowable working pressure
- Increased safety factor in critical systems
- Excellent fatigue resistance

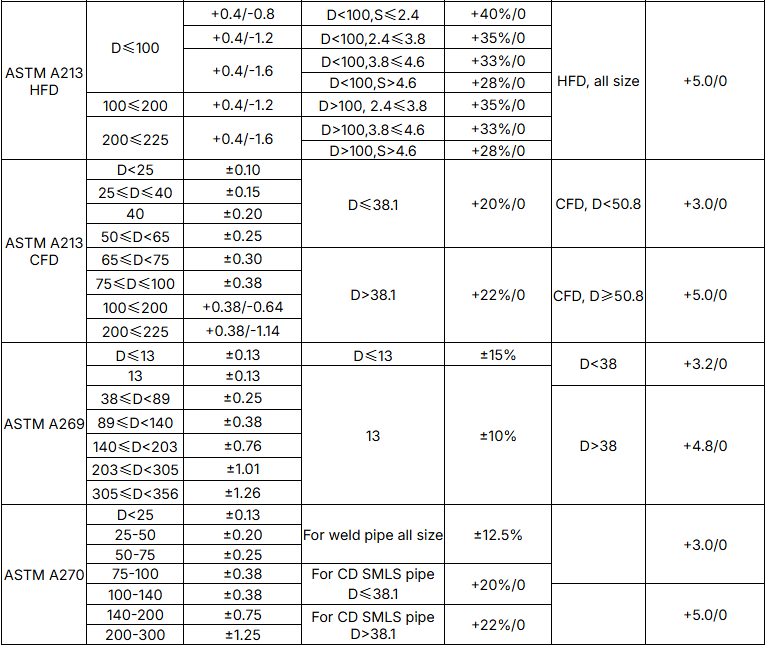

Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for 316Ti stainless steel.
The key to 316Ti’s performance is its precise composition, including the crucial addition of titanium.
Grade 316Ti offers a balance of strength and ductility, making it a reliable solution for various industrial applications.
These physical properties highlight the material’s ability to perform reliably across a range of environments.
Industrial Applications of TP316Ti Tubing
TP316Ti seamless tubing is widely used in industries requiring thermal stability and corrosion resistance:
Chemical & Petrochemical Processing
- Acid handling systems (sulfuric, phosphoric, organic acids)
- High-temperature pipelines
Heat Exchangers & Condensers
- Thermal cycling zones
- Corrosive heat transfer environments
Marine & Offshore Engineering
- Excellent resistance to chloride-induced stress corrosion cracking (SCC)
- Ideal for seawater and subsea systems
Automotive Exhaust Systems
- Withstands high-temperature exhaust gases
- Resistant to oxidation and thermal fatigue
Advanced Manufacturing Process & Quality Assurance
1. Hot Piercing & Billet Preparation
Uniform heating of 316Ti billets followed by precision piercing to produce a hollow mother tube.
2. Cold Pilgering / Cold Drawing
Multi-stage dimensional reduction ensures:
- Tight OD and wall thickness tolerances
- Superior surface finish (Ra ≤ 0.8 μm)
3. Solution Annealing Treatment
- Heating range: 1040°C – 1150°C
- Rapid water quenching
- Restores corrosion resistance and optimizes microstructure
4. Comprehensive Testing & Inspection
Non-Destructive Testing (NDT):
- Eddy Current Testing (ECT)
- Ultrasonic Testing (UT)
Destructive Testing:
- Flaring Test
- Flattening Test
- Intergranular Corrosion Test (ASTM A262 Practice E)
