What is ASTM A213 TP321 Seamless Stainless Steel Tube?
ASTM A213 TP321 Seamless Stainless Steel Tube (UNS S32100 / EN 1.4541) is a titanium-stabilized austenitic stainless steel tube designed for high-temperature and corrosion-resistant applications.
Unlike welded tubes, TP321 seamless tubes are manufactured from a solid billet through extrusion or cold drawing, ensuring:
- No weld seams (zero weld defect risk)
- Superior pressure resistance
- Uniform microstructure and wall thickness
The addition of titanium (Ti) stabilizes the material by binding carbon, effectively preventing chromium carbide precipitation within the temperature range of 425°C–816°C (800°F–1500°F). This provides excellent resistance to intergranular corrosion, especially after welding or prolonged thermal exposure.
Compared to TP304 / TP304L stainless steel tubes, TP321 offers significantly better performance in high-temperature cyclic environments.
Key Features and Competitive Advantages
1. Excellent Intergranular Corrosion Resistance
- Titanium stabilization (Ti ≥ 5×(C+N)) prevents sensitization
- Ideal for applications involving welding and high heat
2. Superior High-Temperature Performance
- Continuous service up to 870°C (1600°F)
- Strong oxidation resistance in thermal cycling conditions
3. Seamless Structural Integrity
- Homogeneous grain structure
- Tight dimensional tolerances
- Reliable under high-pressure conditions
4. Enhanced Fabrication & Weldability
- Suitable for complex fabrication processes
- Typically does not require post-weld heat treatment
5. Cost-Effective Alternative to Nickel Alloys
- Comparable high-temperature resistance
- Lower cost compared to Inconel and other Ni-based alloys
Technical Specifications
Applicable Standards
- ASTM A213 / ASME SA213 (Seamless Tubes)
- ASTM A312 (Optional for piping systems)
- EN 10216-5 (1.4541)
- JIS G3463 / G3459
- GB/T 14976
Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Stainless Steel 321.
The composition of Stainless Steel 321 is carefully balanced to achieve its superior high-temperature stability and corrosion resistance.
Stainless Steel 321 is specifically designed to maintain its strength and shape in high-temperature, high-stress environments.

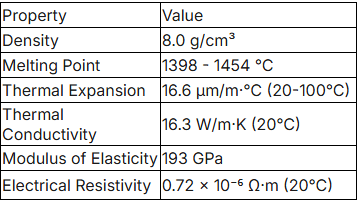

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.

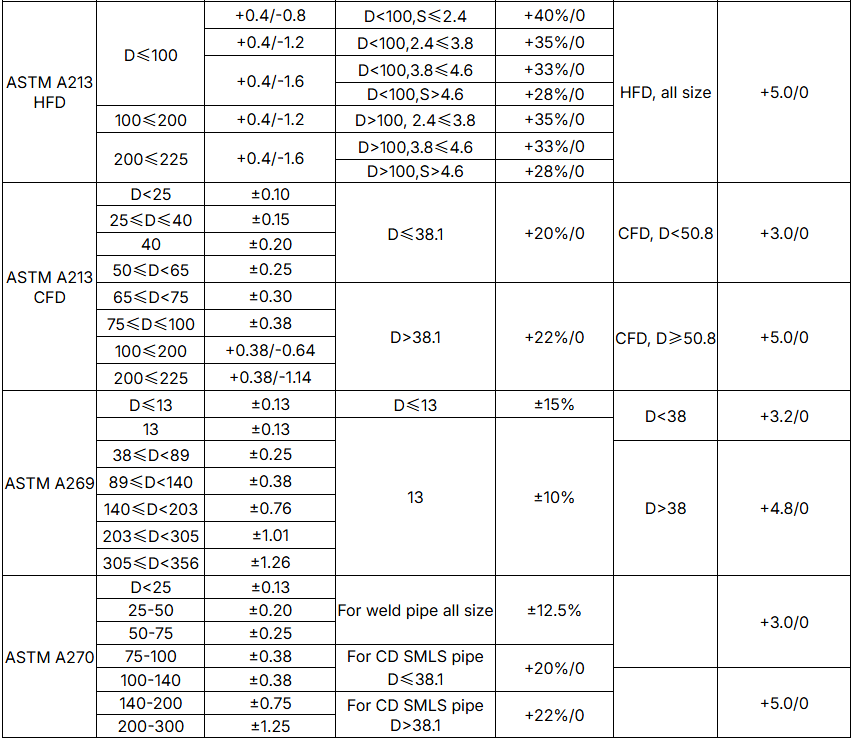

The Standard of ASTM A789 Size Tolerance Size Chart :
Common Industrial Applications
TP321 stainless steel tubes are widely used in high-temperature and corrosion-critical industries
Aerospace & Defense
- Jet engine exhaust systems
- Afterburners and high-heat components
Power Generation
- Superheater and reheater tubes
- High-efficiency boiler systems
Petrochemical & Refining
- Heat exchangers
- Expansion joints
- High-temperature gas pipelines
Food & Pharmaceutical Industry
- Sterilization systems
- Heat-resistant process piping
Quality Assurance & Testing
Each TP321 seamless tube undergoes strict quality control and full traceability:
Certification
- EN 10204 3.1 / 3.2 MTC
- Full raw material traceability
Non-Destructive Testing (NDT)
- 100% Eddy Current Testing (ET)
- Ultrasonic Testing (UT)
- Hydrostatic Pressure Testing
Material Verification
- 100% PMI (Positive Material Identification)
Metallurgical Testing
- Intergranular Corrosion Test (ASTM A262 Practice E)
- Grain Size Analysis
- Flattening and Flaring Tests
Third-Party Inspection
Supported by:
- TÜV
- SGS
- Bureau Veritas (BV)
- Lloyd’s Register (LR)
