Seamless Inconel 625 Pipe (UNS N06625 / 2.4856) – High-Performance Nickel Alloy Pipe for Extreme Environments
Overview of Inconel 625 Seamless Pipe

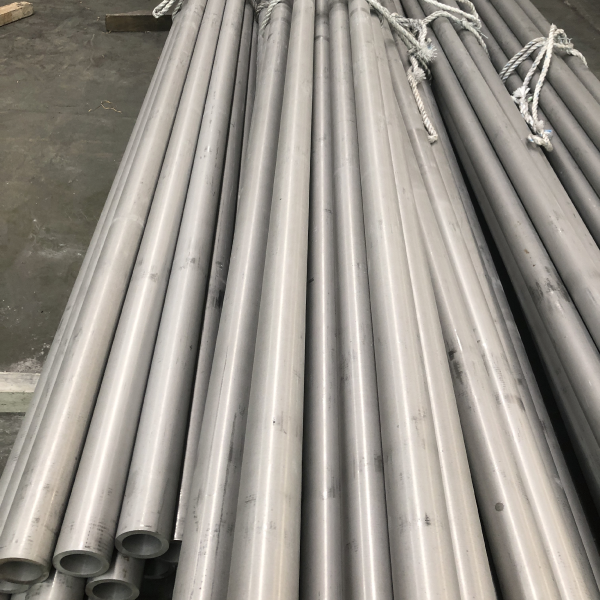

Seamless Inconel 625 Pipe, also known as Alloy 625 Pipe,UNS N06625 Pipe, or EN 2.4856 Nickel Alloy Pipe, is a high-performance nickel-chromium-molybdenum superalloy designed for applications requiring exceptional corrosion resistance, high strength, and reliability under extreme conditions.
Manufactured from a solid billet through hot extrusion and cold drawing, the seamless structure eliminates weld seams, ensuring superior structural integrity and improved resistance to pressure, fatigue, and thermal stress.
Because of its outstanding performance, Inconel 625 seamless pipes are widely used in aerospace, oil & gas, marine engineering, chemical processing, and nuclear power industries.
The alloy’s strength comes from solid-solution strengthening through molybdenum and niobium additions, which significantly enhance mechanical properties without the need for precipitation hardening.
Chemical Composition and Material Characteristics
Inconel 625 is primarily composed of nickel, chromium, molybdenum, and niobium, providing excellent resistance to aggressive environments.
Typical chemical composition includes:
- Nickel (Ni): ≥ 58%
- Chromium (Cr): 20 – 23%
- Molybdenum (Mo): 8 – 10%
- Niobium + Tantalum (Nb + Ta): 3.15 – 4.15%
These elements provide:
- Excellentoxidation resistance
- Outstandingpitting and crevice corrosion resistance
- Superiorchloride stress corrosion cracking resistance
- Excellenthigh-temperature strength and fatigue resistance
International Standards and Specifications
OurInconel 625 seamless pipes and tubes comply with major international standards to ensure reliability and compatibility in critical industrial systems.
Product Type | ASTM Standard | ASME Standard |
Seamless Pipe & Tube | ASTM B444, ASTM B829 | ASME SB444 |
Welded Pipe | ASTM B705, ASTM B775 | ASME SB705 |
Welded Tube | ASTM B704, ASTM B751 | ASME SB704 |
ASTM B444 Inconel 625 Pipe Grades
ASTM B444 specifies two solution-annealed grades:
- Grade 1 (Annealed) – suitable for general high-temperature applications
- Grade 2 (Solution Annealed) – improved creep rupture and fatigue resistance
These standards ensure consistent performance in high-pressure and high-temperature systems.
Key Performance Advantages of Inconel 625 Seamless Pipes
Outstanding Corrosion Resistance
Inconel 625 offers exceptional resistance to:
- Chloride stress corrosion cracking (SCC)
- Pitting corrosion
- Crevice corrosion
- Oxidizing and reducing acids
This makes the alloy highly suitable for marine environments and offshore oil production systems.
High Temperature Strength
The alloy maintains excellent mechanical strength at temperatures up to 1000°C, making it ideal for high-temperature industrial systems.
Excellent Oxidation Resistance
Inconel 625 forms a stable protective oxide layer, preventing scaling and degradation in high-temperature oxidizing environments.
Superior Fabricability and Weldability
Despite its high strength, Alloy 625 seamless pipes exhibit excellent weldability and formability, allowing fabrication of complex piping systems.
Manufacturing Process of Seamless Inconel 625 Pipes
Our advanced production process ensures precision, consistency, and defect-free nickel alloy pipes.
1. Premium Alloy Billet Selection
High-purityVIM/VAR melted billets are used to ensure optimal chemical composition and microstructure.
2. Hot Extrusion and Piercing
The billet is heated and extruded to form a hollow shell, creating the initial seamless pipe structure.
3. Cold Pilgering or Cold Drawing
Cold working improves:
- Dimensional accuracy
- Surface finish
- Mechanical strength
4. Solution Annealing Heat Treatment
Heat treatment dissolves carbides and homogenizes the microstructure, improving corrosion resistance and ductility.
5. Non-Destructive Testing (NDT)
Each pipe undergoes rigorous quality inspection, including:
- Ultrasonic Testing (UT)
- Eddy Current Testing (ET)
- Hydrostatic Pressure Testing
- Dimensional and surface inspection

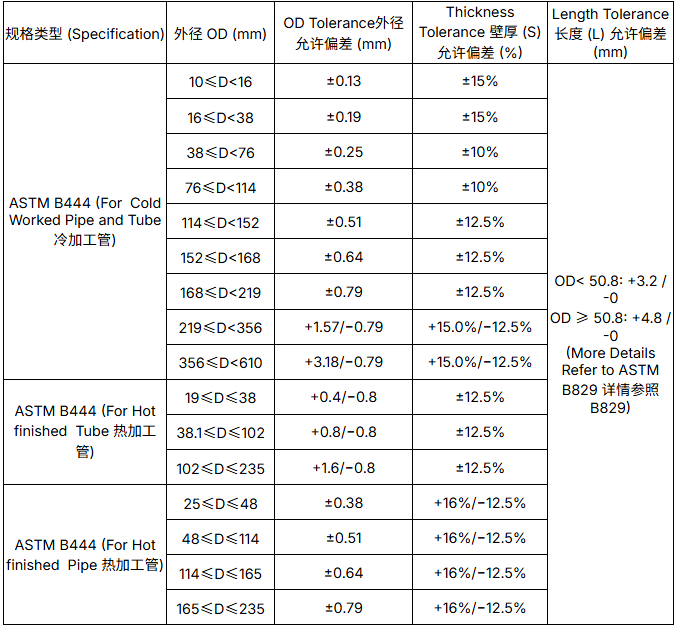

Technical Specifications of Monel 400 Seamless Pipes
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Inconel 625.
The composition of Inconel 625 is carefully balanced to achieve its superior corrosion resistance and high strength.
Monel 400 is specifically designed to maintain its strength and shape in high-stress, corrosive environments.

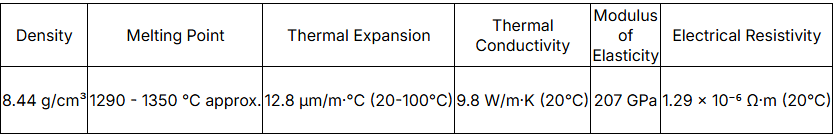

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Common Industrial Applications
Because of its exceptional performance, Alloy 625 seamless pipes are widely used in mission-critical industries.
Oil and Gas Industry
Common applications include:
- Sour gas production tubing
- Subsea pipelines
- Flare stacks
- Downhole completion equipment
Chemical Processing Industry
Inconel 625 piping is used for handling aggressive chemicals such as:
- Phosphoric acid
- Organic acids
- Chloride-containing process fluids
Marine and Offshore Engineering
The alloy’s excellent seawater corrosion resistance makes it suitable for:
- Seawater cooling systems
- Submarine propulsion components
- Offshore platforms
Aerospace Engineering
In aerospace systems, Inconel 625 pipes are used for:
- Aircraft engine exhaust systems
- Fuel delivery systems
- High-temperature bellows and ducts
Nuclear Power Systems
Typical nuclear applications include:
- Reactor core components
- Control rod assemblies
- Heat exchanger tubing
Quality Assurance and Certification
AllInconel 625 seamless pipes are delivered with complete quality documentation, including:
- EN 10204 3.1 Material Test Certificates (MTC)
- Heat number traceability
- Chemical composition analysis
- Mechanical testing reports
- Third-party inspection reports (TPI)
These certifications ensure compliance with global industrial safety and quality standards.
FAQ
What is Inconel 625 pipe used for?
Inconel 625 pipes are used in high-temperature and corrosive environments, including aerospace, offshore oil platforms, chemical plants, and nuclear facilities.
What is the difference between Inconel 625 and stainless steel?
Compared with stainless steel, Inconel 625 offers significantly higher corrosion resistance and better high-temperature strength, especially in aggressive chemical and marine environments.
What standards apply to Inconel 625 seamless pipes?
The most common standards include ASTM B444, ASTM B829, and ASME SB444.
Why choose seamless Inconel 625 pipes instead of welded pipes?
Seamless pipes provide:
- Higher pressure resistance
- Better structural integrity
- No risk of weld seam failure
making them ideal for critical industrial systems.
Why Choose Our Inconel 625 Seamless Pipes?
As a professional supplier of high-nickel alloy pipes, we provide:
- Fully certified UNS N06625 / Alloy 625 pipes
- CompleteEN 10204 3.1 MTR documentation
- Strict quality inspection and traceability
- Custom sizes and technical support for demanding projects
Contact our engineering team today for technical consultation or a customized quotation.
