Overview of Inconel 601 Seamless Pipe

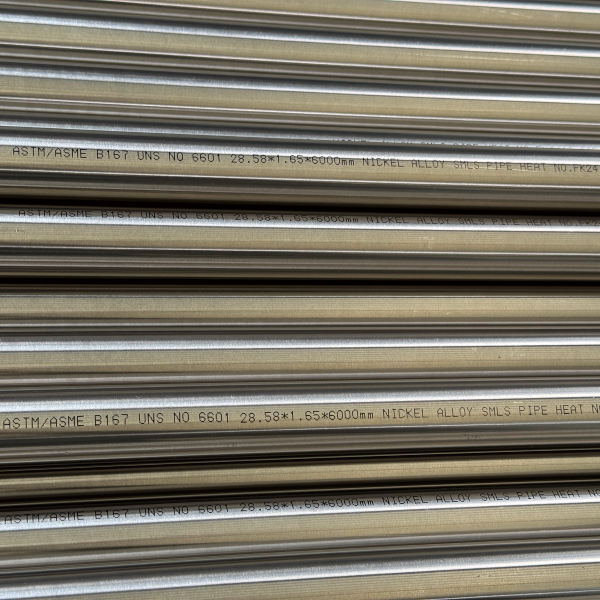

Seamless Inconel 601 Pipe, also known as Alloy 601 Pipe, UNS N06601 Pipe, or EN 2.4851 Nickel Alloy Pipe, is a high-performance nickel-chromium-iron alloy engineered for extreme high-temperature and oxidation environments.
Unlike welded pipes, seamless Inconel 601 pipes are produced from solid billets through hot extrusion and precision cold drawing, eliminating weld seams and ensuring superior mechanical strength, dimensional uniformity, and long-term reliability in high-stress thermal systems.
The defining feature of Inconel Alloy 601 is the addition of aluminum combined with high chromium content, which forms a stable and self-healing oxide layer during service. This protective oxide scale provides exceptional resistance to oxidation, carburization, and high-temperature corrosion, allowing continuous service at temperatures up to 2200°F (1204°C).
Because of these properties, Inconel 601 seamless pipes are widely used in heat-treating furnaces, petrochemical plants, power generation systems, and aerospace equipment.
International Standards and Specifications
OurInconel 601 seamless pipes and tubes are manufactured in accordance with major international engineering standards to ensure reliability and interchangeability in industrial systems.
Product Type | ASTM Standard | ASME Equivalent |
Seamless Pipe & Tube | ASTM B167 | ASME SB167 |
Condenser & Heat Exchanger Tube | ASTM B163 | ASME SB163 |
European Standard | DIN 17751 | ISO 6207 |
These standards define requirements for:
- Chemical composition
- Mechanical properties
- Dimensional tolerances
- Heat treatment conditions
- Inspection and testing procedures

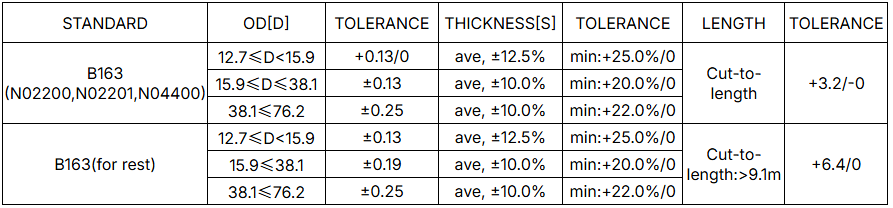

Technical Specifications of Monel 400 Seamless Pipes
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Inconel 601.
The composition of Inconel 601 is carefully balanced to achieve its superior high-temperature oxidation resistance and high strength.
Inconel 601 is specifically designed to maintain its strength and shape in high-stress, high-temperature environments.

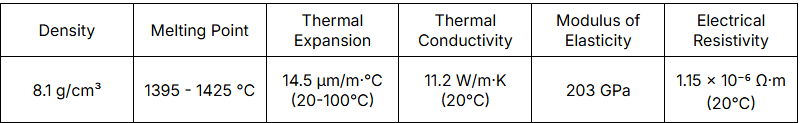

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Key Performance Advantages of Inconel 601 Seamless Pipes
Exceptional High-Temperature Oxidation Resistance
Inconel 601 forms a stable aluminum oxide layer that protects the alloy from scaling and oxidation even during repeated heating and cooling cycles up to 1200°C.
Excellent Carburization Resistance
The alloy performs extremely well in carbon-rich furnace atmospheres, making it ideal for industrial heat-treatment equipment.
Outstanding Metallurgical Stability
Even after long-term exposure to high-temperature combustion gases, Inconel 601 maintains excellent ductility and resistance to embrittlement.
Superior Fabricability
Despite its high-temperature strength, the alloy offers:
- Good weldability
- Excellent cold-forming capability
- Reliable fabrication performance
Common Industrial Applications
Because of its exceptional thermal resistance, Inconel 601 piping is widely used in high-temperature industrial sectors.
Heat Treatment Industry
Typical applications include:
- Radiant tubes
- Furnace retorts
- Annealing muffles
- Flame shields
Chemical and Petrochemical Processing
In chemical plants, Inconel 601 pipes are used for:
- Catalyst grid supports
- Thermal reactors
- Heater tubes
- High-temperature process piping
Power Generation Systems
Applications include:
- Superheater tube supports
- Ash handling systems
- Grid barriers
Environmental Protection Equipment
Inconel 601 is commonly used in:
- Thermal oxidizers
- Waste incineration systems
- High-temperature gas treatment equipment
Aerospace Engineering
In aerospace systems, the alloy is used for:
- Jet engine igniter terminals
- Combustion liner components
Manufacturing Process and Quality Assurance
OurInconel 601 seamless pipes are produced using advanced manufacturing technology to ensure consistent quality and performance.
Billet Selection
High-purity nickel alloy billets are selected to ensure optimal chemical composition and microstructure.
Hot Extrusion
The billets are heated and extruded to form seamless hollow pipes with uniform grain structure.
Cold Drawing and Finishing
Cold processing improves:
- Dimensional accuracy
- Surface finish
- Mechanical strength
Solution Annealing
Controlled heat treatment optimizes the alloy microstructure and enhances corrosion resistance.
Non-Destructive Testing (NDT)
Each pipe undergoes comprehensive inspection including:
- Eddy Current Testing
- Ultrasonic Testing
- Hydrostatic Pressure Testing
- Dimensional and surface inspection
Quality Certification
AllInconel 601 seamless pipes are supplied with complete documentation including:
- EN 10204 3.1 Material Test Certificates
- Heat number traceability
- Chemical composition analysis
- Mechanical testing reports
- Third-party inspection reports (TPI)
These certifications ensure compliance with global industrial safety and engineering standards.
FAQ – Inconel 601 Seamless Pipe
What is Inconel 601 pipe used for?
Inconel 601 pipes are primarily used in high-temperature furnace systems, petrochemical equipment, power plants, and aerospace components.
What temperature can Inconel 601 withstand?
The alloy can operate continuously at temperatures up to 2200°F (1204°C) while maintaining excellent oxidation resistance.
What standards apply to Inconel 601 pipes?
The most common standards include ASTM B167, ASTM B163, and ASME SB167.
Why choose seamless Inconel 601 pipes?
Seamless pipes provide:
- Higher pressure resistance
- Uniform structure
- No weld seam defects
making them ideal for high-temperature industrial systems.
Looking for a Reliable Inconel 601 Pipe Supplier?
As a specialized manufacturer of high-nickel alloy pipes, we provide:
- CertifiedUNS N06601 / Alloy 601 seamless pipes
- FullEN 10204 3.1 traceability
- Custom sizes and specifications
- Technical support for high-temperature engineering projects
Contact our team today to receive a professional quotation or technical consultation.
Comparison of Inconel 600, 601, and 625 Seamless Pipes
Characteristic | Inconel 600 | Inconel 601 | Inconel 625 |
UNS Number | UNS N06600 | UNS N06601 | UNS N06625 |
W.Nr. | 2.4816 | 2.4851 | 2.4856 |
Key Elements | 72% Ni, 15% Cr, 8% Fe | 60% Ni, 23% Cr, 1.4% Al | 60% Ni, 22% Cr, 9% Mo, 3.5% Nb |
Max Service Temp | 1100°C (2000°F) | 1204°C (2200°F) | 982°C (1800°F) |
Primary Strength | Standard high-temp strength | Oxidation resistance | Extreme high strength & fatigue |
Corrosion Profile | Resistance to Cl-ion SCC | Resistance to scaling/oxidation | Pitting & Crevice corrosion (PREN 45+) |
Seamless Standards | ASTM B167 / B163 | ASTM B167 / B163 | ASTM B444 |
Common Use | Nuclear, Food processing | Furnace components, Radiant tubes | Offshore, Aerospace, Chemical plant |
