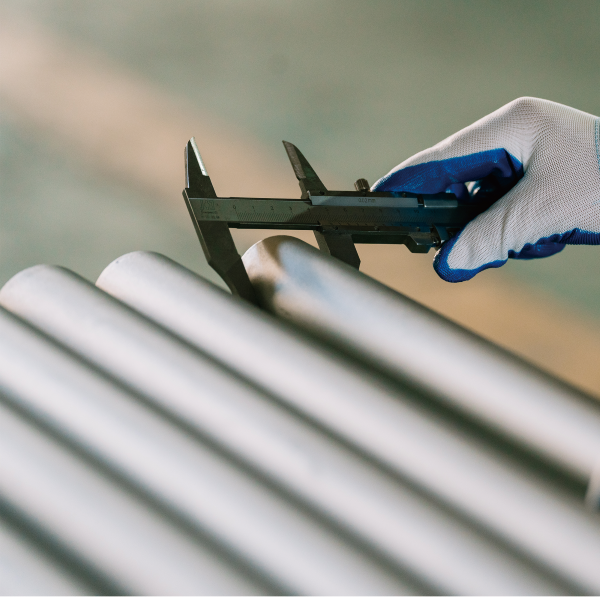

What Is a Seamless Inconel 600 Pipe? (Comprehensive Technical Guide)
Nickel Alloy Inconel 600 (UNS N06600) is a high-performance, corrosion-resistant material engineered for extreme environments. A Seamless Inconel 600 Pipe is manufactured through a hot extrusion or cold drawing process from a single, solid billet. Unlike welded pipes, it has no longitudinal weld seam, providing superior structural integrity, higher pressure ratings, and enhanced reliability in critical applications.
Technical Specifications & Standards
To ensure global compliance and quality, our Inconel 600 seamless pipes are manufactured according to international standards:
- ASTM B167 / ASME SB167: Standard specification for Nickel-Chromium-Iron alloys seamless pipe and tube.
- ASTM B829: General requirements for Nickel and Nickel Alloy seamless pipe.
- UNS N06600 / W.Nr. 2.4816: Common technical designations.
Key Features and Advantages
1. Exceptional Corrosion & Oxidation Resistance
Inconel 600 provides excellent resistance to chloride-ion stress-corrosion cracking (SCC). Its high nickel content (72% min) makes it virtually immune to SCC, while its chromium content provides resistance to sulfur compounds and various oxidizing environments.
2. High-Temperature Stability (Up to 2000°F)
This superalloy maintains high tensile strength and creep-rupture properties at elevated temperatures. It remains stable and resistant to scaling in temperatures reaching 2000°F (1093°C), making it ideal for thermal processing.
3. Superior Pressure Tolerance
Theseamless construction eliminates the”heat-affected zone”found in welded pipes. This allows the pipe to handle significantly higher internal pressures, which is a critical safety factor in nuclear and chemical high-pressure systems.
4. Excellent Mechanical Properties
- Non-Magnetic: Ideal for specialized electronic and sensitive instrument applications.
- Workability: Despite its high strength, Inconel 600 offers good fabricability and can be readily machined and welded using standard industrial methods.

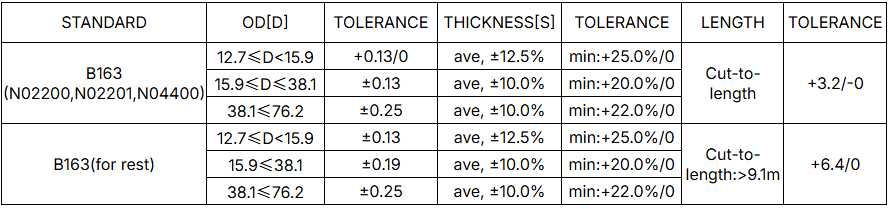

Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Inconel 600.
The composition of Inconel 600 is carefully balanced to achieve its superior corrosion resistance and high strength.
Inconel 600 is specifically designed to maintain its strength and shape in high-stress, high-temperature environments.

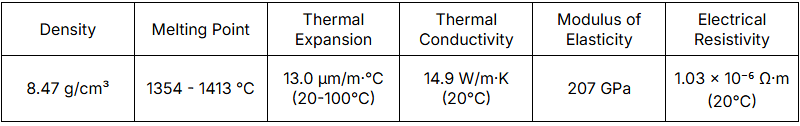

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Common Industrial Applications
The unique metallurgical profile of Inconel 600 seamless pipes makes them indispensable in:
Chemical & Petrochemical
Heater coils, bubble towers, and condensers for handling fatty acids or magnesium chloride.
Nuclear Engineering
Steam generator tubing, control rod inlet components, and reactor vessel seals.
Aerospace & Defense
Jet engine exhaust liners, turbine seals, and airframe components.
Heat Treating
Muffles, retorts, and furnace conveyor belts that undergo repeated thermal cycling.
Why Specify Seamless Over Welded?
For critical infrastructure, the Seamless Inconel 600 Pipe is preferred because:
- No Risk of Weld Decay: Eliminates the risk of intergranular corrosion at the weld seam.
- Better Ovality: Provides tighter dimensional tolerances for precise fittings.
- Uniform Grain Structure: Ensures consistent corrosion resistance across the entire circumference of the pipe.
