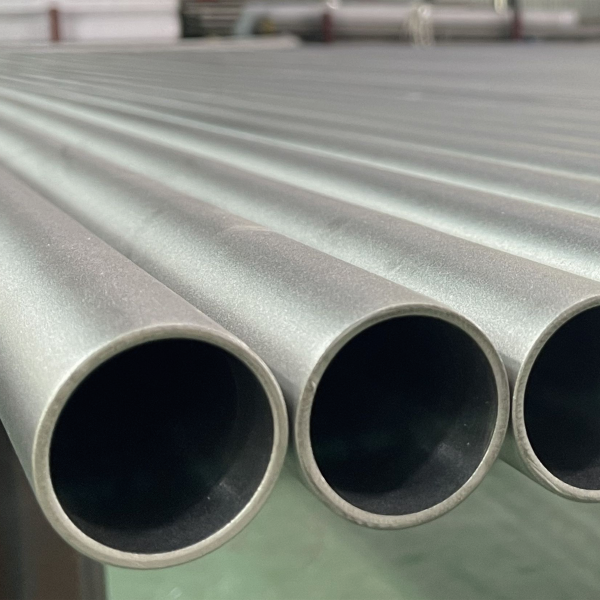

What is TP314 Seamless Stainless Steel Pipe?
TP314 Seamless Stainless Steel Pipe (UNS S31400 / EN 1.4841) is a high-silicon, heat-resistant austenitic stainless steel pipe specifically engineered for extreme temperature and oxidation environments.
Manufactured from solid billets using hot piercing and precision rolling processes, TP314 seamless pipes feature:
- Fully homogeneous microstructure
- No weld seams or heat-affected zones (HAZ)
- Superior pressure resistance and structural reliability
Why Choose TP314 for High-Temperature Applications?
The defining feature of TP314 stainless steel is its elevated silicon (Si) content (1.50% – 3.00%), combined with high chromium and nickel levels. This unique composition:
- Forms a dense and stable oxide layer
- Significantly improves oxidation resistance
- Enhances mechanical stability at extreme temperatures
Compared to conventional grades like 304 or 316, TP314 performs reliably in continuous service up to 1150°C (2100°F).
Key Advantages of TP314 Seamless Pipe
1. Exceptional Oxidation and Scaling Resistance
The high chromium (23–26%) and silicon content creates a protective oxide film, allowing long-term exposure to high-temperature oxidizing atmospheres without degradation.
2. Superior Creep and Rupture Strength
TP314 maintains excellent dimensional stability under sustained thermal stress, making it ideal for:
- Furnace components
- Heat treatment systems
- Continuous high-load environments
3. Seamless Structural Integrity
Seamless construction ensures:
- Higher pressure ratings
- Uniform wall thickness and strength
- No weld defects or localized corrosion risks
4. Excellent Thermal Stability
High nickel content improves:
- Resistance to thermal fatigue
- Stability under cyclic heating and cooling conditions
Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for TP314 stainless steel.
The unique properties of 314 stainless steel are largely due to its balanced composition, with silicon being a key element for high-temperature performance.
Stainless Steel 314 is specifically designed to maintain its strength and shape in high-stress, high-temperature environments.
These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Common Industrial Applications
TP314 is widely used in industries requiring extreme heat resistance and structural stability:
Heat Treatment & Metallurgy
- Radiant tubes
- Furnace muffles
- Retorts and conveyors
Petrochemical Processing
- High-temperature gas pipelines
- Heat exchangers under oxidizing atmospheres
Power Generation
- Boiler components
- Superheater and reheater tubes
Glass & Ceramics Industry
- Kiln linings
- Thermal processing equipment
Advanced Manufacturing Process & Quality Control
Our TP314 seamless pipes are produced under strict quality systems to ensure global compliance and reliability:
1. Billet Heating
Uniform heating of high-purity 314 stainless steel ingots for optimal workability.
2. Hot Piercing
Rotary piercing to form a seamless hollow shell with consistent structure.
3. Cold Rolling / Drawing
Precision dimensional control to achieve exact OD and wall thickness tolerances.
4. Solution Annealing
- Temperature:1050°C – 1150°C
- Rapid quenching to restore corrosion resistance and refine grain structure
5. Comprehensive Inspection
Non-Destructive Testing (NDT):
- Eddy Current Testing (ECT)
- Ultrasonic Testing (UT)
Pressure Testing:
- Hydrostatic testing for leak-proof assurance
Why Choose Our TP314 Seamless Pipes?
- Full compliance with international standards
- Stable high-temperature performance up to 1150°C
- Strict quality control and traceability
- Custom sizes and specifications available
We specialize in high-performance stainless steels, Super Duplex, and nickel alloys, delivering reliable solutions for the most demanding industrial environments.
