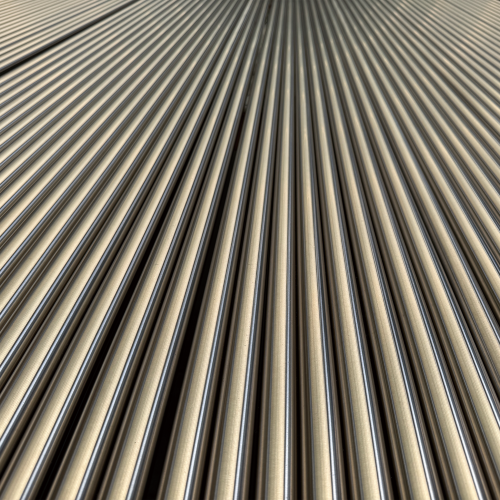

Seamless Inconel 601 Tube
High-Temperature Nickel Alloy Tubing for Extreme Industrial Environments
ASeamless Inconel 601 tube is a high-performance nickel-chromium-iron alloy tube engineered for continuous service in extreme thermal and corrosive environments. Unlike welded tubing, seamless Inconel 601 tubes are manufactured from a single solid billet through hot extrusion and cold drawing processes, resulting in a fully homogeneous metallurgical structure without longitudinal weld seams.
This seamless construction provides superior pressure resistance, uniform mechanical properties, and enhanced reliability under high-temperature conditions. The alloy is based on Inconel 601, designated as UNS N06601, and is specifically designed for excellent oxidation resistance in high-temperature atmospheres.
A key characteristic of Inconel 601 is its aluminum-enriched composition, which forms a stable and adherent oxide layer on the metal surface. This protective scale provides long-term resistance to oxidation, scaling, and thermal cycling at temperatures up to 1204 °C (2200 °F).
Key Advantages of Seamless Inconel 601 Tubing
Exceptional Oxidation and Scaling Resistance
The combination of chromium and aluminum allows Inconel 601 tubing to form a dense, protective oxide layer that prevents surface degradation in oxidizing atmospheres and high-temperature furnace environments.
High-Temperature Mechanical Strength
Seamless Inconel 601 tubes maintain excellent tensile strength and creep-rupture resistance at elevated temperatures, ensuring structural stability during long-term service in thermal processing systems.
Strong Carburization Resistance
Unlike many conventional alloys that become brittle in carbon-rich environments, Inconel 601 exhibits strong resistance to carburization, making it particularly suitable for furnace components and petrochemical processing equipment.
Uniform Structural Integrity
The seamless manufacturing process eliminates weld seams and heat-affected zones (HAZ), ensuring consistent mechanical performance, uniform corrosion resistance, and improved burst strength throughout the entire tube circumference.

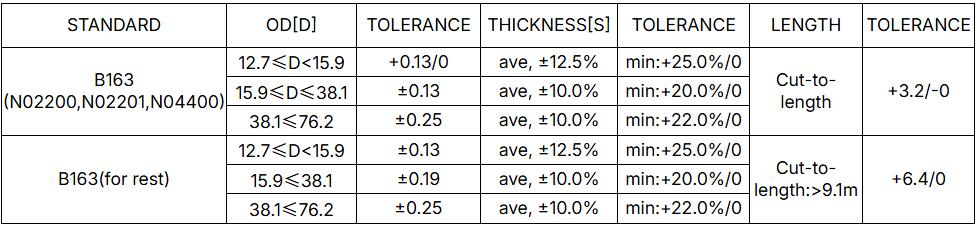

Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Inconel 601.
The composition of Inconel 601 is carefully balanced to achieve its superior high-temperature oxidation resistance and high strength.
Inconel 601 is specifically designed to maintain its strength and shape in high-stress, high-temperature environments.

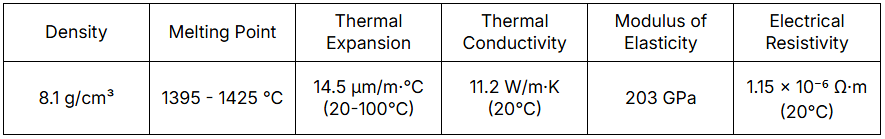

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Industrial Applications of Inconel 601 Seamless Tubes
Due to their outstanding high-temperature performance, Inconel 601 seamless tubes are widely used in industries requiring oxidation resistance, thermal stability, and long service life.
Typical applications include:
Thermal Processing and Heat Treatment Equipment
Radiant tubes, furnace muffles, retorts, flame shields, and other components operating under continuous thermal cycling.
Power Generation Systems
Superheater supports, ash-handling equipment, and high-temperature gas systems exposed to combustion environments.
Chemical and Petrochemical Processing
Ammonia reformers, catalyst support grids, and high-temperature reactor components.
Aerospace and Defense Engineering
Jet engine components, combustion liners, exhaust systems, and thermal protection structures.
Manufacturing Process of Seamless Inconel 601 Tubes
The production of Inconel 601 seamless tubing involves several precision metallurgical steps designed to ensure high reliability and dimensional accuracy.
Billet Preparation and Heating
A solid nickel alloy billet is carefully conditioned and heated to forging temperature to optimize plastic deformation.
Hot Extrusion
The heated billet is extruded through a die and mandrel, converting the solid billet into a seamless hollow tube.
Cold Drawing and Pilgering
Secondary cold-working processes refine the tube dimensions, improve surface finish, and enhance mechanical properties.
Solution Annealing
A critical heat-treatment stage restores the alloy’s microstructure, ensuring optimal corrosion resistance, ductility, and high-temperature stability.
Inspection and Quality Testing
Each tube undergoes strict quality assurance procedures, including non-destructive testing (NDT) such as hydrostatic testing, eddy current inspection, and dimensional verification.
Manufacturing Process of Seamless Inconel 601 Tubes
The production of Inconel 601 seamless tubing involves several precision metallurgical steps designed to ensure high reliability and dimensional accuracy.
Billet Preparation and Heating
A solid nickel alloy billet is carefully conditioned and heated to forging temperature to optimize plastic deformation.
Hot Extrusion
The heated billet is extruded through a die and mandrel, converting the solid billet into a seamless hollow tube.
Cold Drawing and Pilgering
Secondary cold-working processes refine the tube dimensions, improve surface finish, and enhance mechanical properties.
Solution Annealing
A critical heat-treatment stage restores the alloy’s microstructure, ensuring optimal corrosion resistance, ductility, and high-temperature stability.
Inspection and Quality Testing
Each tube undergoes strict quality assurance procedures, including non-destructive testing (NDT) such as hydrostatic testing, eddy current inspection, and dimensional verification.
Inconel Alloy Comparison
601 vs 600 vs 625
Understanding the differences between common nickel alloys helps engineers select the most suitable material for high-temperature applications.
Feature | |||
Primary Advantage | Excellent oxidation resistance | General corrosion resistance | High strength and pitting resistance |
Key Alloying Elements | Aluminum + Chromium | High Nickel | Molybdenum + Niobium |
Max Temperature (Oxidizing) | 2200°F (1204°C) | 2000°F (1093°C) | 1800°F (982°C) |
Typical Applications | Furnace components, radiant tubes | Nuclear engineering, heat exchangers | Marine systems, chemical processing |
Carburization Resistance | Excellent | Good | Moderate |
Why Choose Seamless Inconel 601 Tubes Instead of Welded Tubes?
For critical high-temperature applications, seamless tubes provide several engineering advantages over welded alternatives.
Uniform Pressure Resistance
Without a longitudinal weld seam, stress distribution is uniform, enabling higher pressure capability.
Consistent Corrosion Resistance
Seamless tubes avoid the localized corrosion risks sometimes found in weld heat-affected zones.
Superior Thermal Cycling Reliability
In furnace and high-temperature equipment, seamless tubes expand and contract uniformly, reducing the risk of weld fatigue and premature failure.
Summary
Seamless Inconel 601 tubing represents a premium solution for high-temperature industrial applications. By combining the structural integrity of seamless manufacturing with the advanced oxidation-resistant chemistry of the Inconel 601 nickel alloy, these tubes deliver long-term reliability in the most demanding thermal environments.
Industries such as thermal processing, petrochemical refining, power generation, and aerospace rely on Inconel 601 seamless tubes for their exceptional oxidation resistance, high-temperature strength, and superior durability.
