What is UNS S32950 Seamless Pipe?

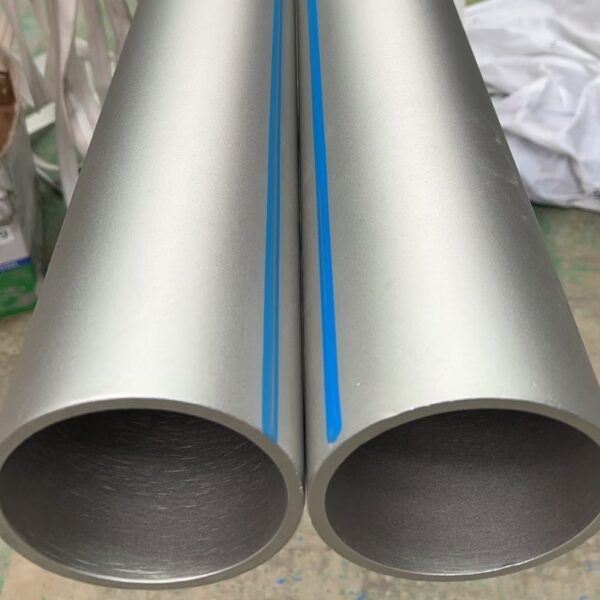

Seamless Super Duplex Steel UNS S32950 Pipe is a high-performance, pressure-rated stainless steel pipe manufactured from a solid billet using seamless processing methods such as hot piercing and extrusion.
Unlike welded pipes, the seamless structure eliminates longitudinal weld seams, ensuring:
- Superior structural uniformity
- Enhanced resistance to internal pressure
- Improved fatigue and cyclic loading performance
UNS S32950 is a Super Duplex Stainless Steel grade with a balanced austenite–ferrite microstructure (40–60% ferrite / 60–40% austenite). This dual-phase composition delivers a powerful combination of:
- High mechanical strength
- Excellent corrosion resistance
- Outstanding resistance to chloride-induced degradation
Key Advantages of UNS S32950 Super Duplex Pipe
1. Enhanced Pitting & Corrosion Resistance
- PREN ≥ 38
- High chromium content (26–29%)
- Excellent resistance to:
- Pitting corrosion
- Crevice corrosion
- Chloride environments
Outperforms standard duplex grades such as 2205 (S31803)
2. High Strength & Lightweight Design
- Yield strength ≈ 2.5× higher than 316L stainless steel
- Enables:
- Reduced wall thickness
- Lower material consumption
- Improved cost efficiency
3. Superior Stress Corrosion Cracking (SCC) Resistance
- Highly resistant to chloride-induced SCC
- Ideal for:
- High-temperature chloride media
- Offshore and chemical environments
4. Good Fabrication & Weldability
- Better workability compared to higher alloy super duplex grades
- Suitable for:
- Cold forming
- Welding fabrication
5. Cost-Effective Alternative
- Can replace:
- High-nickel alloys
- Titanium (in certain environments)
- Provides excellent performance-to-cost ratio
Product Specifications and Data
The composition of UNS S32950 is optimized for strength and corrosion resistance within the super duplex family.
The composition of Nickel 200 is carefully controlled to achieve its superior properties.
S32950 is specifically designed to maintain its strength and shape in high-stress, corrosive environments.
These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
| NPS Designator (Inches) | Permissible Variations in Outside Diameter (Inches) |
| 1⁄8 to 1 1⁄2, inclusive | Over: 1⁄64 in. (0.015 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 1 1⁄2 to 4, inclusive | Over: 1⁄32 in. (0.031 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 4 to 8, inclusive | Over: 1⁄16 in. (0.062 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 8 to 18, inclusive | Over: 3⁄32 in. (0.093 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 18 to 26, inclusive | Over: 1⁄8 in. (0.125 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 26 to 34, inclusive | Over: 5⁄32 in. (0.156 in.) |
| Under: 1⁄32 in. (0.031 in.) | |
| Over 34 to 48, inclusive | Over: 3⁄16 in. (0.187 in.) |
| Under: 1⁄32 in. (0.031 in.) |
Wall Thickness (WT) Tolerance
The wall thickness tolerances are defined by the nominal wall thickness (t) and the outside diameter (D).
1. Minimum Wall Thickness
The minimum wall thickness at any point on the pipe shall not be more than {12.5%} under the nominal (specified) wall thickness.
2. Maximum Wall Thickness (Percentage Over Nominal)
The maximum allowable wall thickness variation depends on the size and the t/D ratio (ratio of nominal wall thickness to ordered outside diameter):
| NPS Designator (Inches) | t/D Ratio | Permissible Variation (Over Nominal WT) |
| 1/8 to 2, inclusive | All ratios | +20.0% |
| 3 to 18, inclusive | t/D ≤ 5% | +22.5% |
| 3 to 18, inclusive | t/D >5% | +15.0% |
| 20 and larger (Seamless) | t/D ≤ 5% | +22.5% |
| 20 and larger (Seamless) | t/D >5% | +15.0% |
| 20 and larger (Welded) | All ratios | +17.5% |
Length Tolerance
For pipe ordered to a Specific Cut Length, the standard tolerance is +1⁄8 in. [3.2 mm], -0 in. [0 mm].
Pipe is typically supplied in Single Random Lengths (17 to 24 ft) or Double Random Lengths (38 to 40 ft), unless otherwise specified.
Disclaimer: These tolerances are based on the common requirements found in ASTM A790, primarily through its reference to ASTM A999. The full and most current specification document must always be consulted for official design and procurement purposes.
Common Industrial Applications
UNS S32950 seamless pipes are widely used in critical industries requiring high strength and corrosion resistance:
Pulp & Paper Industry
- Digester vessels
- Bleaching systems
- Chemical recovery piping
Fertilizer Industry
- Nitric acid plants
- Urea production systems
- Heat exchangers
Offshore & Marine Engineering
- Seawater cooling systems
- Firewater pipelines
- Subsea piping (moderate chloride environments)
Chemical Processing
- Organic acids handling
- Chloride-rich media
- Reactors and condensers
Power Generation
- Hydropower penstocks
- Flue Gas Desulfurization (FGD) systems
Why Choose UNS S32950 Seamless Pipe?
- High strength-to-weight ratio
- Excellent resistance to chloride corrosion
- Long service life with reduced maintenance
- Reliable performance in high-pressure systems
- Cost-effective alternative to high-alloy materials
Standards & Compliance
- ASTM A790 / ASME SA790
- ASTM A928
- ASTM A999
- NACE MR0175 (for sour service applications)
