What is Seamless Nickel 201 Pipe?
Seamless Nickel 201 Pipe (UNS N02201) is a commercially pure wrought nickel alloy with a minimum of 99.0% Ni, engineered for extreme corrosion resistance, high-temperature stability, and structural integrity. Compared to Nickel 200, Nickel 201 features a lower carbon content (max 0.02%), which prevents graphitization—a type of embrittlement occurring in nickel between 315°C and 650°C (600°F – 1200°F).
Manufactured from a single solid billet without welds, these pipes ensure maximum mechanical strength and leak-free performance, even in aggressive chemical and high-pressure environments.
Key Advantages & Performance Characteristics
Exceptional Caustic Resistance
Nickel 201 is renowned for superior resistance to caustic alkalis, including sodium hydroxide (NaOH) and potassium hydroxide (KOH), even at elevated temperatures and high concentrations.
High-Temperature Stability
Thelow-carbon composition ensures the alloy remains ductile, crack-resistant, and dimensionally stable during prolonged exposure above 315°C (600°F).
Superior Thermal & Electrical Conductivity
Nickel 201 offers excellent heat transferandhigh electrical conductivity, outperforming most stainless steels and nickel-based alloys in heat exchanger and conductive applications.
High Ductility & Fabricability
Despite its strength, Nickel 201 is highly workable, allowing easy bending, flaring, and complex fabrication.
Vacuum & Purity Applications
The alloy’s low vapor pressure and high purity make it ideal for vacuum systems and high-purity chemical processing.

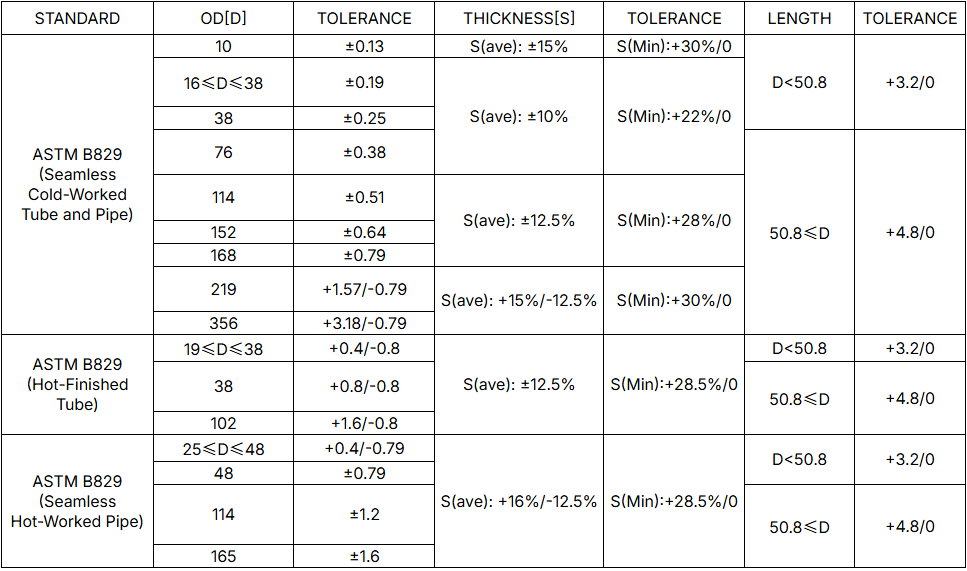

Technical Specifications of Nickel 201 Seamless Pipes
The composition of Nickel 201 is carefully balanced to achieve its superior corrosion resistance and high-temperature stability.
Nickel 201 is specifically designed to maintain its strength and shape in high-stress and corrosive environments.

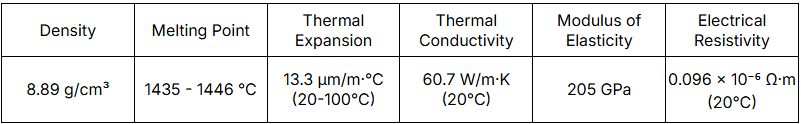

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Industrial Applications of Seamless Nickel 201 Pipes
TP317L seamless tubes are widely used in industries requiring maximum corrosion resistance and operational reliability:
Caustic Processing
Evaporators and pipelines handling molten caustic soda and potassium hydroxide
Food & Synthetic Fibers
High-temperature food processing and viscous fiber production
Petrochemicals
Vinyl chloride monomer (VCM) production and chlorination systems
Electronics & Aerospace
Heat exchanger tubes, vacuum components, and battery manufacturing
Quality Assurance & Testing
AllSeamless Nickel 201 pipes are supplied with 100% traceabilityandcertified testing reports:
- EN 10204 3.1 & 3.2 Material Test Certificates (MTC)
- Positive Material Identification (PMI) – 100% verification of alloy purity
- Mechanical Testing – Tensile, Yield, Elongation, Flattening, Hardness
- Non-Destructive Testing (NDT) – Eddy Current (ET), Ultrasonic (UT), Hydrostatic Pressure Testing
- Surface Analysis – Visual inspection and surface roughness measurement
