Premium Seamless Hastelloy C276 Tubes (UNS N10665/Alloy C276) | Corrosion-Resistant Solutions
Seamless Hastelloy C276 tubesare ultra-performance piping components engineered from a complex nickel-chromium-molybdenum-tungsten superalloy. Produced from a single solid billet without any longitudinal weld joints, these tubes ensure maximum structural integrity and zero-leak reliability in high-stress, high-temperature, and ultra-corrosive environments.
Commonly referred to as the”Universal Corrosion-Resistant Alloy,”C276 is specifically designed to withstand the most aggressive chemical media, including wet chloride gas, hypochlorite, and chlorine dioxide. Its exceptional resistance to localized attack—such as pitting and crevice corrosion—makes it the definitive choice for severe chemical processing and pollution control.
Key Technical Features and Engineering Advantages
- Universal Corrosion Resistance: Provides unrivaled stability in both oxidizing and reducing acids, as well as complex corrosive mixtures.
- Superior Resistance to Localized Attack: The high molybdenum and tungsten content delivers exceptional protection against pitting and crevice corrosion in high-chloride environments.
- High-Pressure & Thermal Resilience: The seamless extrusion process ensures a uniform wall thickness capable of handling extreme internal pressures and thermal cycling.
- Exceptional Weldability: Can be integrated into complex systems using standard welding methods without the risk of intergranular corrosion or post-weld decay.
- Immunity to Stress-Corrosion Cracking (SCC): The high nickel base provides nearly complete immunity to chloride-induced stress corrosion cracking.
Product Specifications and Data
To provide a comprehensive overview of this high-performance material, here are the detailed technical specifications and performance data for Hastelloy C276.
The composition of Hastelloy C276 is carefully balanced to achieve its superior corrosion resistance and high strength.
Hastelloy C276 is specifically designed to maintain its strength and shape in high-stress, corrosive environments.

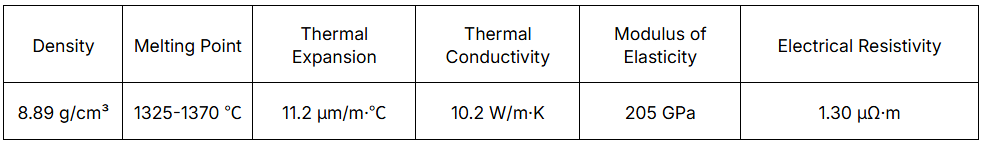

These physical properties highlight the material’s ability to perform reliably under a wide range of conditions.
Strategic Industrial Applications
The combination of mechanical strength and chemical versatility makes Seamless C276 tubing indispensable for:
Chemical Processing
Critical reactors, heat exchangers, and piping handling highly aggressive acids and chlorides.
Pollution Control (FGD)
Scrubbers, stack liners, and dampers in Flue-Gas Desulfurization systems.
Pharmaceutical Manufacturing
High-purity process equipment where hygiene and material stability are non-negotiable.
Hazardous Waste Management
Systems designed for the safe recovery and processing of corrosive and toxic waste streams.
Precision Manufacturing Process
The production of Hastelloy C276 seamless tubes follows a rigorous, multi-stage metallurgical process to ensure peak performance:
- Controlled Heating: A solid Hastelloy C276 billet is heated to its optimal forging temperature to prepare for deformation.
- Hot Extrusion: The billet is forced through a precision die above its recrystallization temperature, refining the grain structure while forming a high-strength hollow shell.
- Precision Cold Finishing: The shell is rolled and cold-drawn to achieve exact dimensional tolerances for outside diameter and wall thickness.
- Solution Annealing: Specialized heat treatment is applied to dissolve precipitates and restore maximum corrosion resistance and ductility.
- Rigorous Integrity Verification: Every tube undergoes 100% Non-Destructive Testing (NDT), including hydrostatic, eddy current, and ultrasonic verification before final finishing.
